This article provide the steps on how to configure CC extraction in eMAM with NetXCode.


1. Login to eMAM Director.

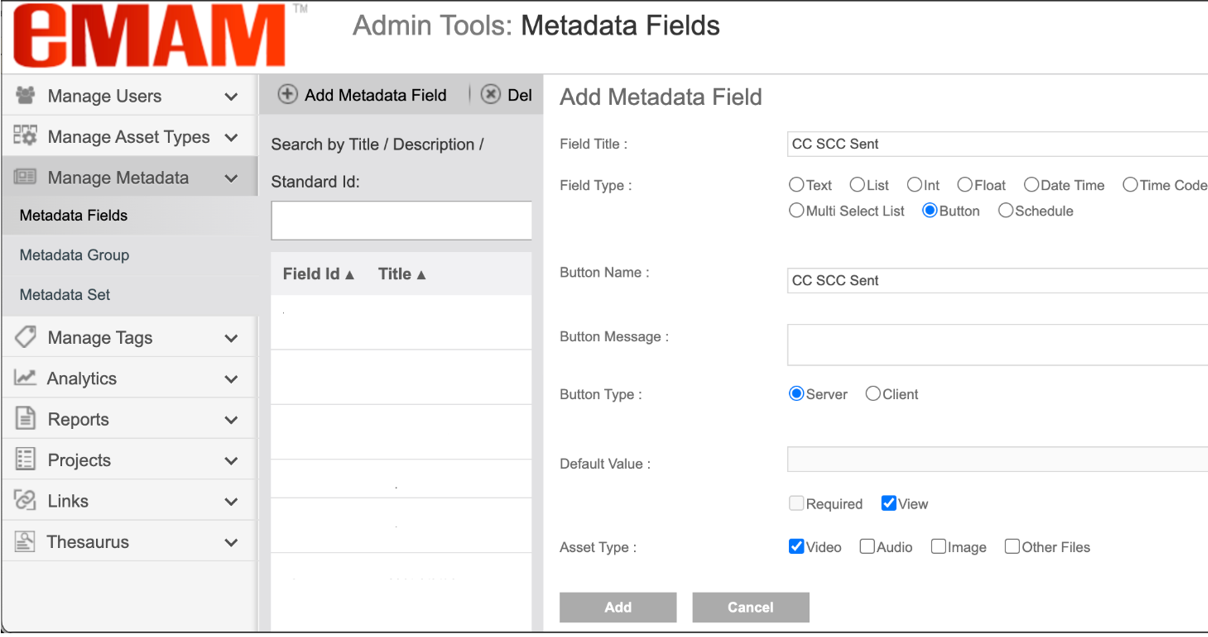

2. Go to Admin tools widget, create a Button Metadata field and assign to the required Metadata Group and Metadata Set.


3. Login to eMAM SuperAdmin.

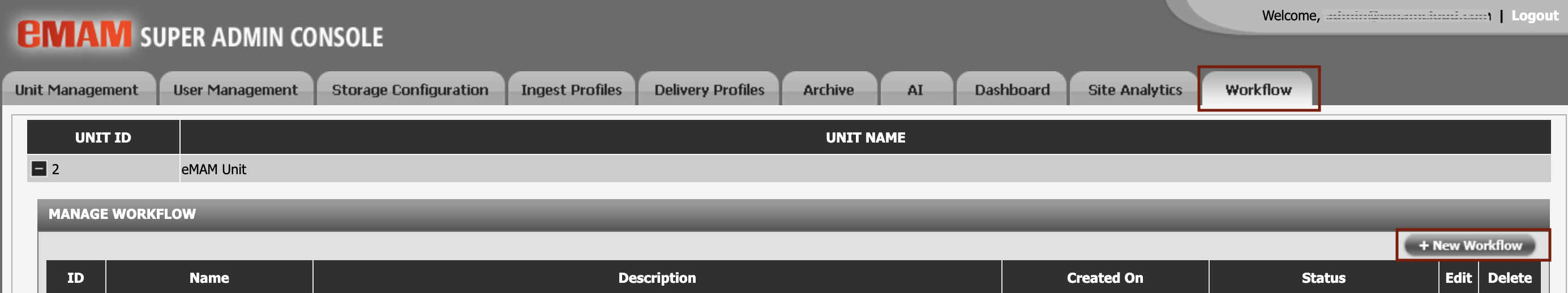

4.     Go to Workflow Dashboard and click-on the “+ New Workflow” button to create new workflow.


5.     Provide all required information.

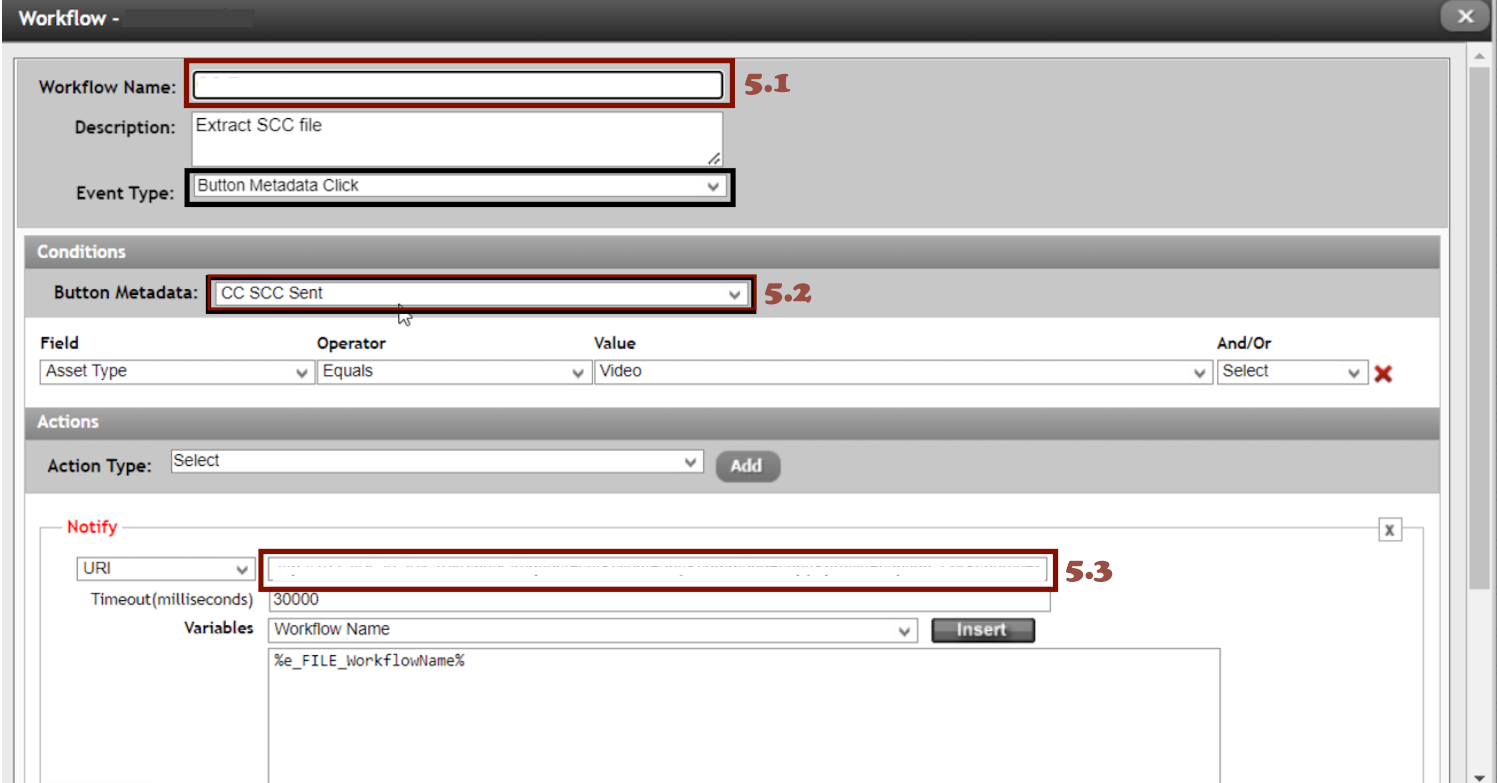

            5.1  Key-in the Workflow Name with Event Type = Button Metadata click

            5.2  Select the Button Metadata and set Asset Type = Video.

5.3  Provide the URI as below:

http://Drastic Server IP:1080/netx?request=set&client=any&command=copy&profile=caption-138&source=%e_FILE_FullOriginalLocation%&target=\\Storage System IP\EMAM_Proxy\CC\%e_FILE_Assetid%.vtt&flags=notifyeMam,eMamAssetID-%e_FILE_Assetid%,zerobasedoutput,markfirsttime

                  note: this will trigger an API call to Drastic to extract the VTT file.


6.     Drastic will then perform the following task:

·       Extract the VTT from the Original File.

·       Call eMAM API: Update the transcript widget and the file version widget using the appropriate API commands.
